Access Terminal Box (ATB) is designed to connect the drop cable with PON ONU (Optical Network Unit) in FTTH application. Access Terminal Box (ATB) is installed on the wall and provides protection for optical fiber splicing or termination.
Access Terminal Box (ATB) supports fusion splicing, mechanical splicing and field assembly fast connectors. Access Terminal Box (ATB) is compact and cost-effective.

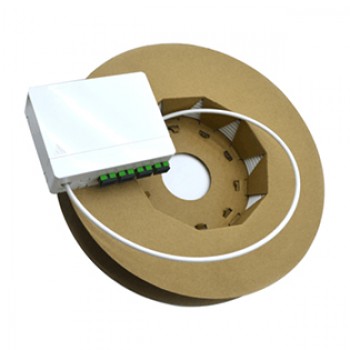

ATB with pre-terminated Drop Cable provides quick and secured installation from the subscriber end to the floor box or multi-dwelling unit. The connector at one side of Drop Cable connects the adapter inside ATB (no splice) and the other side of Drop Cable with no connector attached is ready for splicing.
Features:
- Light and compact
- Easy installation
- Easy operation by inner clip design
- Two types of Drop Cable for option, for indoor or outdoor application
- Cable length for option
Applications:
- Wall mounting installation
| Material | ABS |
| Size (H*W*D) | 100*80*29mm |
| Capacity | SC: 4 fibers |
| Net Weight | 0.3kg |
| Color | White |
| Fiber Type | G.657A1, G.657A2, OM1 62.5/125um, OM2 50/125um, etc. |
| Cable Diameter | 3.0mm or 5.0mm |
| Jacket | LSZH or PVC |
| Cable Length | 0~100m |
| Cable Diameter | Cable Length | Paper Reel Size | Inner Box Size |
| 3.0mm | 0~50m | 200(D)*40(H)mm | 220*210*45mm |
| 50~100m | 250(D)*40(H)mm | 270*260*45mm | |
| 5.0mm | 0~20m | 200(D)*40(H)mm | 220*210*45mm |
| 20~50m | 250(D)*40(H)mm | 270*260*45mm | |
| 50~100m | 300(D)*40(H)mm | 320*300*45mm |
