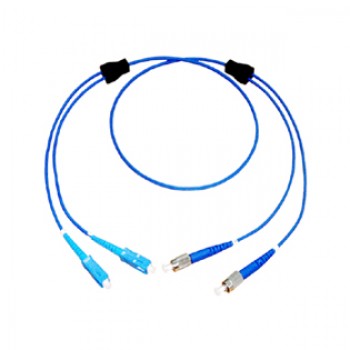

Armored patchcords can be laid in all kinds of harsh environments. It has stainless steel tube to protect optical fibers and provides better security for the whole system.
Structures:
- - Armored cable offers 0.6mm tight buffer fibers.
- - Kevlar yarn member offers high strength.
- - Armored cable has a flexiblesteel armored tube to increase the cable’s twist resistance.
Features:
- - Flexible stainless steel tube to protect optical fibers from damage
- - Good performance of torsion, tensile strength, pressure, and anti-rodent
- - Various connectors are available complying with international standard, such as FC/SC/ST/MU/LC, etc
Applications:
- - CATV
- - LAN & WAN
- - National defense
- - Telecommunication networks
- - FTTX, FTTH (Fiber to the Home)
| Mode | SM | MM | |||
| Polishing | PC | UPC | APC | PC | |
| Insertion Loss | ≤0.3dB | ≤0.3dB | ≤0.3dB | ≤0.3dB | |
| Return Loss | ≥45dB | ≥50dB | ≥60dB | ≥35dB | |
| Interchangeability | ≤0.2dB | ||||
| Salt Spray | ≤0.2dB | ||||
| Repeatability | ≤0.1dB (1,000 times) | ||||
| High Temperature | ≤0.2dB (+85°C 168 hours) | ||||
| Low Temperature | ≤0.2dB (-40°C 168 hours) | ||||
| Temperature Cycle | ≤0.2dB (-40°C~85 °C 21 cycles 168 hours) | ||||
| Humidity | ≤0.2dB (95% 75°C 168 hours) | ||||
| Durability | ≥1,000 matings | ||||
| Vibration | ≤0.1dB (10-55Hz 1.5mm) | ||||
| Falling | ≤0.2dB (1.5m high, 8 times) | ||||
| Tensile Strength | Long Term | 100N | |||
| Short Term | 200N | ||||
| Crush Resistance | Long Term | 3,000N | |||
| Short Term | 5,000N | ||||
| Bending Radius | Dynamic | 20D | |||
| Static | 10D | ||||
| Operating Temp. | -40°C~+85°C | ||||
