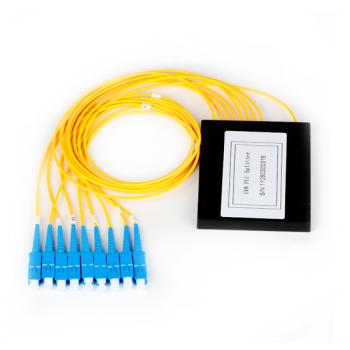

FirstFiber provides a various of 1xN and 2xN Micro-stype PLC splitters, including 1x2, 1x4, 1x8, 1x16,1x32, 1x64 PLC splitter and 2x2, 2x4, 2x8, 2x16, 2x32, 2x64 PLC splitters.
Features
• Good uniformity and low insertion loss
• Low Polarization Dependent Loss
• Excellent Mechanical
• Stability Telecordia GR-1221 and GR-1209
• Components through TLC-Certified,Conform to YD1117-2001
• Operating environment: -40ºC to +85ºC
• High Polarization Extinction Ratio & Excellent Uniformity
• Fiber output: 250μm bare fiber (It is benefit for splicing)
• G.657A Fiber
| Parameter |
Port Configuration |
| 1X2 |
1X4 |
1X8 |
1X16 |
1X32 |
1X64 |
| Fiber Type |
G.657A |
| Operating Wavelength(nm) |
1260～1650 |
| Insertion Loss(dB) |
Typical |
3.7 |
6.8 |
10.0 |
13.0 |
16.0 |
19.5 |
| Max |
4.0 |
7.2 |
10.5 |
13.5 |
16.9 |
21.0 |
| Loss Uniformity (dB) |
Max |
0.4 |
0.6 |
0.8 |
1.2 |
1.5 |
2.5 |
| Return Loss (dB) |
Min |
50 |
50 |
50 |
50 |
50 |
50 |
| PDL (dB) |
Max |
0.2 |
0.2 |
0.3 |
0.3 |
0.3 |
0.4 |
| Directivity (dB) |
Min |
55 |
55 |
55 |
55 |
55 |
55 |
Wavelength Dependent
Loss(dB) |
Max |
0.3 |
0.3 |
0.3 |
0.5 |
0.5 |
0.8 |
Temperature Dependent
Loss(-40~+85°C) |
Max |
0.5 |
0.5 |
0.5 |
0.8 |
0.8 |
1.0 |
| Operating Temperature (°C) |
-40~+85 |
| Storage Temperature (°C) |
-40~+85 |
