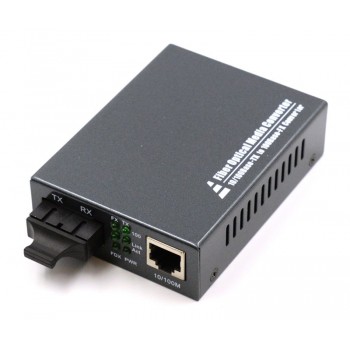

The media converter is used to convert one type media signal to other equivalent type, this allows the two segments to be connected easily and inexpensively. The Converter can be used as a standalone unit or as a slide-in module to the 19" converter rack (up to 16 units) for use at a central wiring hub.
Product Features
- Easy Intergration
- Cost Effective
- Auto MDI/MDI-X support on RJ-45 Port
- Auto polarity correction on RJ-45 Port
- Local and Remote loopback test for the first time installation and troubleshooting
- Compatible with other Gigabit 1000Base-T/SX/LX devices
- Status LEDs for easy monitoring of device status
- Compliant with IEEE802.3ab 1000Base-T and IEEE 802.3z Base-SX/LX Standards
- FCC Class A & CE approved
Type | 10/100BASE-TX TO 100BASE-FX |
Connector | SC/UPC |
Mode | Multimode |
Maximum Distance | 550m Multimode |
Input Power | 2A +5V, Comes with 115V Adapter |
Operating Temperature | 0 - 70°C |
Height | 26.2mm |
Width | 81mm |
Depth | 105mm |
