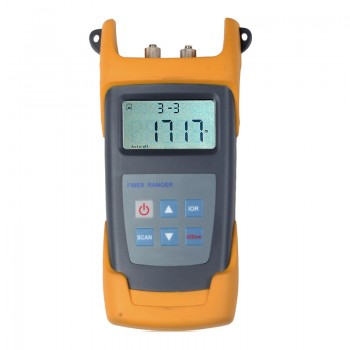

FF-3304N Optical Fiber Ranger is the most portable test instrument in the industry. It adopts the OTDR technical principles and integrates the powerful analysis software, which enables the FF-3304N fiber ranger detect fiber faults location more accurate and easy
Features
- Portable, rugged, lightweight; Easy to use.
- More accurate testing results and better repeatability.
- Up to 8 fiber faults can be detected in each measurement.
- Automatic Pulse Width Control design to ensure a convenient operation.
- Easy to identify the faults location.
- Built-in visual fault locator (VFL), conveniently to find the faults in dead zone.
- Dust, water and shock proof, designed for field use
- Long battery life, up to 5000 measurements operation.
Applications
- Testing the distance of the fiber and identify the faults location in the fiber link.
- Locates reflective and non-reflective breaks in the fiber network.
- Inspection of fiber repair and maintenance.
The FF-3304N Fiber Ranger is ideal to be used in FTTx network installation and maintenance.
Specifications
|
Model |
FF-3304N |
|
|
Operating Wavelength |
1550nm（1310nm Optional） |
|
|
Fiber Type |
9/125um SM Fiber |
|
|
Optical Connector Type |
FC/PC |
|
|
Detector Type |
InGaAs |
|
|
Peak Power of laser |
≥60mW |
|
|
Max. Displaying Distance |
Reflection Event |
60km (≥1dB) |
|
Non-reflection Event |
20km (≥2.5dB) |
|
|
Measurement Unit |
m |
|
|
Reflection Event Dead Zone |
15m |
|
|
Distance Accuracy（Reflection Event） |
±ï¼ˆ2m+2*10（-4）*Distance） |
|
|
Wavelength of VFL Option |
650nm |
|
|
Output Power of VFL Option |
>=1mW |
|
|
Power Supply |
Alkaline Battery (3pcs AA 4.5V Batteries) |
|
|
Battery Operating Time |
≥5000 measurements |
|
|
Working Temperature |
-5~40℃ |
|
|
Storage Temperature |
-10~60℃ |
|
|
Humidity |
0~85%（Non-condensation） |
|
|
Dimensions |
190*100*50mm |
|
|
Weight（g） |
450 |
|
Standard Packages
|
MODEL |
INCLUDES |
|
FF-3304N |
FF-3304N Fiber Ranger, 3pcs 1.5V batteries, User Manual, Cotton swabs and Soft carrying case. |
