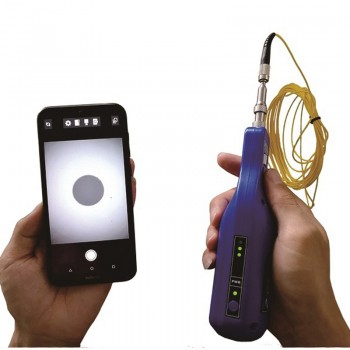

WIFI optical fiber inspection probe transmits pictures to mobile phone through WIFI signal and display, easy to carry and clearly judge the condition of the optical fiber end, for example scratches and dirt. WIFI optical fiber inspection probe is built-in independent WIFI signal, with high-definition CCD and lens displays the image on the mobile phone. The whole series adapters can satisfy all kinds of optical fiber inspect demands.
Features
1. Longer use life and better imaging quality
Inner structure is newly designed to get longer use life, no matter how bad the environment is, the internal optical component will not deteriorate and the imaging quality is good.
2. Use WIFI signal, the connection is convenient and stable
Through WIFI signal connect to mobile phone, which is accord with modern society intelligent work mode and has stable connectivity. No matter factory environment or engineering site, our inspection probe always shows a stable and clear image.
3. Clear image acquisition software
The image signal transmitted to mobile phone will display clearly through developed image display software, which is easier to check different fiber ends inspection conditions and is satisfy with various test environments.
Specifications
|
Magnification |
200X |
|
Resolution Ratio |
0.5μm |
|
Focusing Mode |
Manual |
|
Video Signal Format |
WIFI signal transmission |
|
Display |
Mobile screen display |
|
Storage Temperature |
-20~50℃ |
|
Work Temperature |
-10~50℃ |
|
Power Dissipation |
3W |
|
Power Supply |
Inner 5V charging battery or external power |
|
Work time for one time charge |
≥5 hours |
|
Dimensions |
210mm*56mm*50mm |
|
Weight |
0.5kg |
Standard Adapters
|
Model |
Description |
|
2.5-U-M (2.5mm PC Male) |
Test:FC/SC/ST/E2000 patch cord PC termination |
|
1.25-U-M (1.25mm PC Male) |
Test:LC/MU patch cord PC termination |
|
SC-U-F (SC/PC Female) |
Test:SC/PC adapter inside patch cord termination |
|
LC-U-F (LC/PC Female) |
Test:LC/PC adapter inside patch cord termination |
