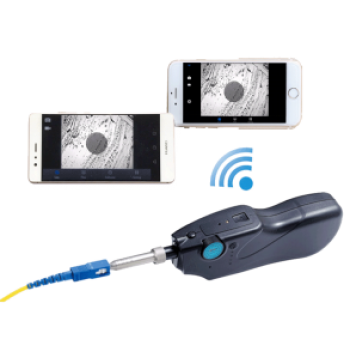

FF-760AW Fiber Microscope
USB & WIFI supported
- Wifi / USB quick switch for dual use
- USB digital support in Windows/Linus/Mac
- Wifi support in Android and iOS
- Image capture feature to save time
- Built-in lithium rechargeable battery for 5hr
- 98% consistent alignment to centralize end face
- 400× magnification, <1µm resolution
- LED button for light source control
- CE/CEM/RoHS Certified
- External Interface: micro USB
- No need exterior Wireless AP or Module
Items | Value | |||
Magnification | 400X | |||
Resolution | <1.0μm | |||
Field of View | X: 0.3487mm Y: 0.2632mm | |||
Laser Source | Blue LED | |||
Focus Method | Unidirectional manual | |||
Focus Time | 1~5 seconds | |||
Snapshot Button | yes | |||
WiFi and USB Switch Button | yes | |||
Communication Port | Micro USB | |||
Connection Standard | WiFi 802.11 and USB2.0 | |||
Wireless Frequency | 2.4GHz | |||
Wireless Transmission Distance | 20m | |||
Smartphone Compatibility | Android 4.4 and above; IOS 8.0 and above | |||
Voltage | 5V | |||
Battery | 3100mHA Lithium battery | |||
Charging Time | ≤5h | |||
Testing Time | ≥5h | |||
Dimension | 19*5*3cm | |||
Weight | 0.175kg | |||
Working Temperature | -10℃~50℃ | |||
Storage Temperature | -20℃~60℃ | |||
Humidity | <90% (non-condensing) | |||
Standard Accessories: | ||||
Name | Quantity | |||
Fiber Microscope | 1pc | |||
Adapter SC-PC-F (for SC/PC adaptor and connector) | 1pc | |||
Adapter FC-PC-F (for FC/PC adaptor and connector) | 1pc | |||
Adapter LC-PC-F (for LC/PC adaptor and connector) | 1pc | |||
USB cable | 1pc | |||
Optional Accessories (Contact our sales for the accessories): | ||||
Name | Quantity | |||
ST-PC-F (For ST/PC adaptor) | 1pc | |||
MU-PC-F (For MU/PC adaptor) | 1pc | |||
E2000-F-PC (For E2000/PC adaptor) | 1pc | |||
MTRJ-PC-F (For MTRJ/PC adaptor) | 1pc | |||
1.25PC-M (For 1.25mm connectors, LC/PC, MU/PC) | 1pc | |||
SMA-M (For SMA/PC connector) | 1pc | |||
FC-F-APC (For FC/APC adaptor) | 1pc | |||
SC-F-APC (For SC/APC adaptor) | 1pc | |||
LC-APC-F ((For LC/APC adaptor) | 1pc | |||
E2000-APC-F ((For E2000/APC adaptor) | 1pc | |||
2.5M-APC (For 2.5mm connectors, SC/APC, FC/APC, ST/APC) | 1pc | |||
MPO-PC-F (For MPO/PC adaptor); MPO-APC-F (For MPO/APC adaptor) |
1set | |||
Tip60 (60 degree base for special tips) | 1pc | |||
FC-PC-60F (For FC/PC adaptor at 60 degree testing) | 1pc | |||
SC-PC-60F (For SC/PC adaptor at 60 degree testing) | 1pc | |||
LC-PC-60F (For LC/PC adaptor at 60 degree testing) | 1pc | |||
LC-APC-60F (For LC/APC adaptor at 60 degree testing) | 1pc | |||
SC-APC-60F (For SC/APC adaptor at 60 degree testing) | 1pc | |||
1.25APC-M ( (For 1.25mm connectors, LC/APC, MU/APC at 60 degree testing) | 1pc |
