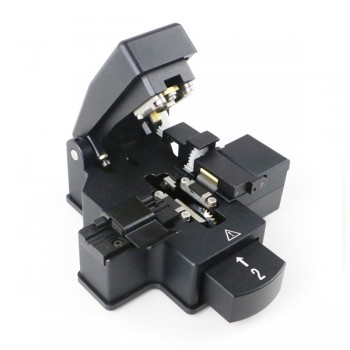

The FF-80T fiber cleaver is available with a single fiber adapter for 250 to 900 micron coated single fibers. It is a simple operation for the user to remove or install the single fiber adapter and alternate between mass and single fiber cleaving. Built on a robust high-quality platform, the cleaver is ideal for use with fusion splicing or other precision applications, setting a new standard for flexibility and performance. An optional fiber scrap collector can be installed with the cleaver to help maintain loose scraps, resulting from the cleaving process. The scrap collector works to automatically grab and store the scrap fibers as the cleaver’s lid is raised, following a completed cleave.
Features
1) 78000 cutting times
2) Suitable for 0.125mm fiber
3) Blade rotated automatically
4) cut-off-fiber collection automatically
5) Protection cover lock easily
6) Adsorption bin for easily clearance
7) Two step fiber cleaving
8) <0.5° cleaving angle
9) Simple and easy replacement of blade
10) 16 cutting location for each blade
|
Product name
|
FF-80T Fiber cleaver |
||
|
Steps
|
2 steps
|
||
|
Fiber type
|
Single fiber
|
||
|
Bare fiber diameter
|
125μm
|
||
|
Outercoat diameter
|
0.25~0.9 μm
|
||
|
Cleaved length
|
23~30mm
|
||
|
Cutting angle
|
<0.5°
|
||
|
Blade life
|
78, 000 times
|
||
|
Dimensions (mm)
|
103W x 93D x 47H
|
||
|
Weight
|
340g
|
||
