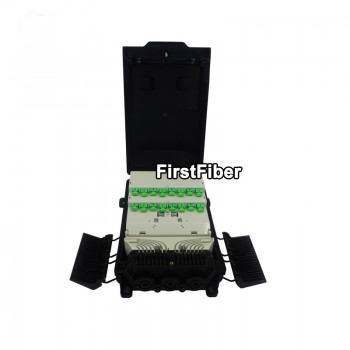

FF-FTB16Q Fiber Drop Closure for Fiber Access Terminal is a butt type gel sealed fiber optic splicing and patching closures designed for fiber access point applications in the telecom outside plant network. FF-FTB16Q Fiber Drop Closure for Fiber Access Terminal has 3 main cable ports and 16 drop cable ports. Loop storage of 6m loose tubes allows 2 main cables loop through at the same time. The closure accommodates up to 12 fusion splices (or 4 mechanical splices), two PLC splitters and 16 SC adapters. Sealing is achieved via built-in gel technology, resulting in extremely convenient re-entry and re-sealing.
Features:
- Gel sealing for excellent sealing and re-sealing performance
- High quality engineering material of PP with good mechanical strength, sturdiness and durability
- Stacked splice tray, easy for opening, being taken out, and installation and maintenance
Standards:
- UL 94, Test for Flammability of Plastic Materials for Parts in Devices and Appliances
- YD/T2150-2010 Optical fiber cable distribution box
Specification:
| Max. Capacity | 16 fibers |
| Max. Inlet Cable Diameter | 20mm |
| Inlet Cable Number | 3pcs |
| Drop Cable Diameter | 2×3m drop cable |
| Outlet Cable Number | 16pcs |
| Protection Grade | IP68 |
| Installation Method | Wall mounting and pole mounting (pole ring is optional) |
| Working Environment | Outdoor and indoor |
| Dimension | 300(H)*210(W)*105(D)mm |
| Working Temperature | -40°C~+65°C |
| Storage Temperature | -40°C~+70°C |
| Relative Humidity | 0%~85% (+30°C) |
| Air Pressure | 70~106KPa |
Cabling Routing
Wall installation & Pole Installation
