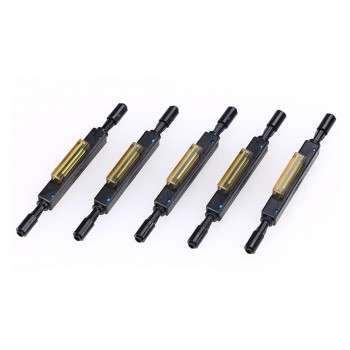

L925B Fiber Optical Mechanical Splicer can easily connect 250μm and 900μm diameter fiber. It is suitable for indoor cable connection. No need any adhesive and curing process.
- Fiber axial solid fit, reducing the performance degradation caused by the loss of matching fluid;
- Intermittent fit connection technology to ensure signal transmission;
- Bare fiber, tight-clad can be both used in the connector;
- Can be long-term used outside without loss value increased;
- High rate of success for installation and easy installation, the average connecting time is 150 seconds;
- It is applicable for optical fiber splicing and restoration for damaged lines.
|
Applicable for |
φ 0.25 mm& φ 0.90 mmFiber |
|
Optical fiber diameter |
125μ m ( 652 & 657 ) |
|
Tight buffer diameter |
250μ m |
|
Fiber mode |
Single & multimode |
|
Operation time |
About 60s(No fiber cut) |
|
Average Insert loss |
≤ 0.25dB(1310nm & 1550nm) |
|
Return loss |
≤ -45dB |
|
Fastening strength of naked fiber |
> 5 N |
|
Fastening strength of naked fiber holder |
> 10 N |
|
Using temperature |
-40~+75°C |
|
Storage temperature |
-40~+80°C |
