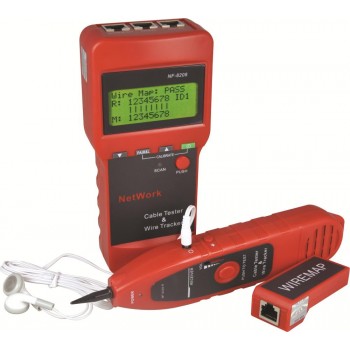

NF-8208 is an intelligent cable test & inspection instrument with lots of new functions researched and developed by our company. The equipment is composed of tester (NF-8208), receiver (NF-838-R) and remote identifier. The instrument owns three great functions of hunting, wire, sorting and circuit status testing .thus; it becomes available tool for technicians in installation and maintenance of weak current system. It is widely applicable to telephone system, computer network, other metal wire circuit and other fields.
Features
1. One person enough to complete cable continuity check.
2. The function of probing the audio and tracing the cable.
3. Check wire fault in 5E, 6E, coaxial cable and telephone line such as open circuit, short circuit, jumper wire, reverse connection or cross-talk interference.
4. Locate the range of wiring or connection error .
5.Measure cable length and determine the distance of open circuit and short circuit.
6. Dynamically calibrate cable length and make length measurement as accurate as 95%.
7. Far-end recognizer with prompting voice.
8.Self-checking function and automatically compensate any change in battery capacity or ambient temperature.
9.Single board computer software watchdog design and reliable operation..
Specification
| Indictor | LCD 53x25 mm, with back light |
| Tone frequency | 225 Hz |
| Max. distance of transmission | 2 km |
| Max. distance of cable map | 300m |
| Max. working current | Less than 70mA |
| Tone mode | 2 Tone adjustable |
| Compatible connectors | RJ45 |
| Max. signal voltage | 15Vp-p |
| Function and faults LCD display | LCD display ( wiremap, Tone, short, , No adapter, Low battery ) |
| Cable map indication | LCD (#1-#8) |
| Shielded indication | LCD ( #9) |
| Voltage protection | AC 60V/DC 42V |
| Battery Type | DC9.0V(NEDA 1604/6F22 DC9V x 1pcs) |
| Dimension(LxWxD) | 185x80x32mm |
| NF-8208 Receiver specifications | |
| Frequency | 225kHz |
| The Max. working current | Less than 70mA |
| Earjack | 1 |
| LED illumination | 2 |
| Battery Type | DC9.0V(NEDA 1604/6F22 DC9V) x1pc |
| Dimension(LxWxD) | 218x46x29 mm |
| NF-8208 Remote unit specifications | |
| Compatible connectors | RJ45 |
| Dimension(LxWxD) | 107x30x24mm |
Package
1 x Main Tester (Emitter)
1 x Receiver
1 x Remote Identifier
1 x Toolkit Bag
1 x Alligator Clip
1 x RJ45 Cable
1 x Earphone
1 x User Manual
