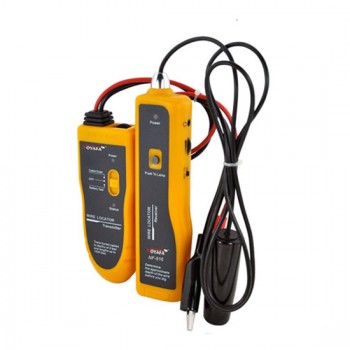

NF-816 is designed to locate the path of non-energized wires behind walls and underground. It is also capable of locating a specific circuit breaker, Pinpoints shorts, ground faults & broken wire .Its effective range is up to 3 feet deep and 1000 feet in length.
Main functions:
- Locating & tracking buried and hidden wires.
- Determining Which Receptacles are on specific circuits.
- Pinpointing Drill Sites before drilling.
- White LED Flash Light
Technical indexes:
| Tone frequency | 900Hz |
| The Max length distance | 1000 feet |
| The Max depth distance | 3 feet |
| The Max. working current | Less than 70mA |
| Tone mode | 1 Tone |
| Max. signal voltage | 15Vp-p |
| Signal display | Signal tone, Antenna |
| Voltage protection | AC 60V/DC 42V |
| Battery type | DC9.0V(NEDA 1604/6F22) x 1pc |
| Dimensions (LxWxD) | 49 x 135 x 33mm |
| NF-816 Receiver specifications | |
| Frequency | 900kHz |
| The Max. working current | Less than 70mA |
| Earphone jack | 1 |
| Battery type | DC9.0V(NEDA 1604/6F22) x 1pc |
| Dimensions (LxWxD) | 43 x 168 x 27mm |
Package Include:
1 x Emitter
1 x Receiver
1 x Earphone
1 x Instruction manual
1 x Kit bag
1 x Colored box
