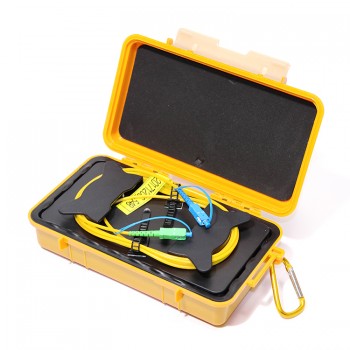

SC/FC/LC connectors are selectable as well as the UPC and APC polishing mode.Designed to aid in the testing of fiber optic cable when using an OTDR. The OTDR Launch Fiber box is used with Optical Time Domain Reflectometers (OTDR's) to help minimize the effects of the OTDR's launch pulse on measurement uncertainty
|
Mechanical & Environmental Characteristics |
|
|
Dimension |
23.8cmx 14.1cm x 6.7cm |
|
Material |
SR Polypropylene |
|
Color |
Yellow |
|
Weight |
0.75kg |
|
Packaging |
Rugged, hard-shell transit case |
|
Storage Temperature |
-40℃ to +85℃ |
|
Operating Temperature |
-40℃ to +85℃ |
|
Humidity |
0 to 95%, non-condensing |
|
Fiber & Connector Characteristics |
|
|
Fiber Types |
G652D, G657A, OM1, OM2, OM3, OM4 |
|
Fiber Length (m) |
500/1000/2000m |
|
Typical Loss |
<0.5dB @ 1310 for 1000 meters |
|
Connector Type |
SC/LC/FC/ST |
|
Polish |
UPC/APC |
|
Return Loss* |
UPC>=50dB, APC>=60dB, PC>=35dB |
|
Repeatability (dB) |
<=0.2 (1000 times) |
|
Exchangeability (dB) |
<=0.2 |
Feature & Application
- Pulse Suppressor, Launch Box, Delay Line, Installation/Testing, Training, Calibration
- Compound Latch for positive seal and easy opening with locking feature.
- Nonmetal construction will not dent, corrode, or conduce electricity
- Water and dust proof allowing the unit to be taken into almost any environmen
- Auto Purge Valve for changes in altitude and temperature
