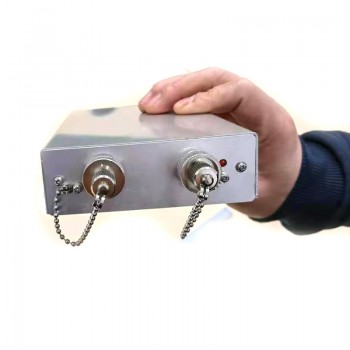

Small and high-performance mountable-type OTDR module, applicable to optical system monitoring
Can be customized and software development
Specifications
|
Wavelength（Max: 4）
|
Single mode
|
Multi mode
|
|
1310nm/1490nm/1550nm/1625nm/1650nm
|
850nm/1300nm
|
|
Dynamic Range(dB)
|
26~45dB
|
22dB/26dB or 26dB/28dB
|
|
Event/ Attenuation Dead Zone
|
0.8m/4m
|
2m/6m
|
|
Minimum sampling resolution
|
0.05m
|
|
Maximum sampling point
|
256,000
|
|
linearity
|
≤0.05dB/dB
|
|
Loss resolution
|
0.001dB
|
|
Distance resolution
|
0.01m
|
|
Distance accuracy
|
±(1m+Range×3×10-5+Sampling resolution) （Regardless of the refractive index）
|
|
Memory
|
>100000
|
|
Interface
|
USB（Type A×1，Type B×1）
|
|
Battery
|
Single battery capacity：7.4V/2500mAh x2
|
|
Temperature
|
Environment temperature：-10℃~+50℃, Storage temperature：-20℃~+70℃
|
|
Humidity
|
≤95%（No condensation）
|
|
Size/Weight
|
215×155×68mm / 1.1kg (with battery)
|
