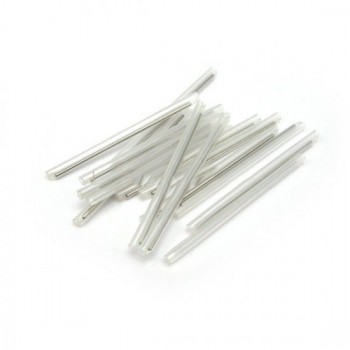

FF-PS Series Fiber Splice Protective Sleeves are designed to restore mechanical strength,environmental integrity and fiber optic transmission properties after fiber splicing. There are single fiberprotective sleeves, ribbon fiber protective sleeves for 4 cores, 6 cores, 8 cores, 12 cores, etc. and dropcable protective sleeves. The reinforcements for the three types are different. The single fiber protectivesleeves realize the reinforcement by single stainless steel rod and drop cable protectives sleeves bysingle or dual stainless steel rod, while ribbon fiber protective sleeves use single or dual ceramic torealize the reinforcement function.
Features
- Customized length available
- Color-coded outer tubes available
- Splice point protection and intensity improvement
- External tube clearly shows the status of fiber joint
- Outer tube in compliance with CHINA YD/T1024-1999
- Completed shrink in compliance with CHINA YD/T1024-1999
- Airproof performance keeps the splice point’s good resitance of humidity and temperature
| Ribbon Fiber Protective Sleeves | |||
| External Tube | Internal Tube | Reinforcement | |
| Material | XLPO | EVA | Ceramic |
| Working Temperature | -55~100℃ | ||
| Shrinking Temperature | 90~110℃ | ||
| Model | Ceramic | Internal Tube | External Tube | Protective Sleeve | |
| Applied Ribbon Fiber | Diameter (w1)*Length (h1) | Width(W)*Height(H)*Length (L) | Length (L) | Outer Diameter*Length | |
| FF-PS-RD40-12 | 8 - 12 fibers | 3.9*1.9mm | 5.0*3.0*40mm | 40mm | 7.6*40mm |
| FF-PS-RD40-06 | <6 fibers | 3.0*1.3mm | 3.3*2.0*40mm | 40mm | 5.5*40mm |
| FF-PS-RS40-12 | 8 - 12 fibers | 3.9*1.9mm | 5.0*3.0*40mm | 40mm | 5.5*40mm |
| FF-PS-RS40-06 | < 6 fibers | 3.0*1.3mm | 3.3*2.0*40mm | 40mm | 4.0*40 |
Warranty Service:
FirstFiber warrants to the purchaser that our products shall be free from defects in material and workmanship under normal use (consumables, normal tear and wear excluded) for a period of one year from the date of shipment. Any part which is determined by FirstFiber to be defective in material or workmanship shall be returned to FirstFiber or authorized service location, as FirstFiber designates and shipping costs prepaid. Defective items will be repaired or replaced at FirstFiber's option.
 |
